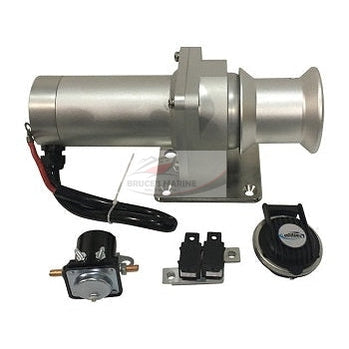

Endurance WCH2000 Capstan Deck Winch

Endurance WCH2000 Capstan Deck Winch, redesigned, more powerful and quieter!

The beauty of a capstan deck winch is that you are not held back to a limited amount of line like you would be with a regular drum winch, the length of line can be almost limitless. Put a couple of wraps on the 3" capstan head, apply tension and let the capstan winch motor do all the hard work for you.

The Endurance Capstan Deck Winch is an affordable, high quality anchor winch that will handle vessels up to 35' (11 m). The compact design allows installation in limited space that will accommodate small craft docking or davit applications on larger craft.

The recovery rate allows many other applications such as retrieval of crab and prawn traps and many other non-marine applications where a capstan winch could work.

A very hearty 1000 lbs lifting capacity, and it will pull more if it is a rolling load. Machined out of billets of 5083 aircraft aluminum to be completely corrosion-proof

Specifications:

• 2.2 HP, 12V motor
• 6 Planetary gear system
• 121:1 Gear ratio
• 40 rpm
• Capstan diameter 3.25"
• Line speed:
  • 200 lb load: 45 feet per minute with a 50 amp draw
  • 1000 lb load: 15 feet per minute with an 80 amp draw

• Heavy Duty 100 Amp, 12 Volt Solenoid
• Deck switch with Stainless Steel cover plate
• 80 amp Circuit breaker
