Turning Point Propellers

Turning Point Masterguard Series Propeller Hub Kit (22)

$41.99 CAD
$45.59 CAD $41.99 CAD
Shipping calculated at checkout.
  • For Evinrude / Johnson Engines 20 - 35 HP with 3" Gearcase
  • Prop Shaft Splines: 14, Prop Material: Aluminum
  • Heavy Duty Spacer Adapts to All OEM Thrust Washers

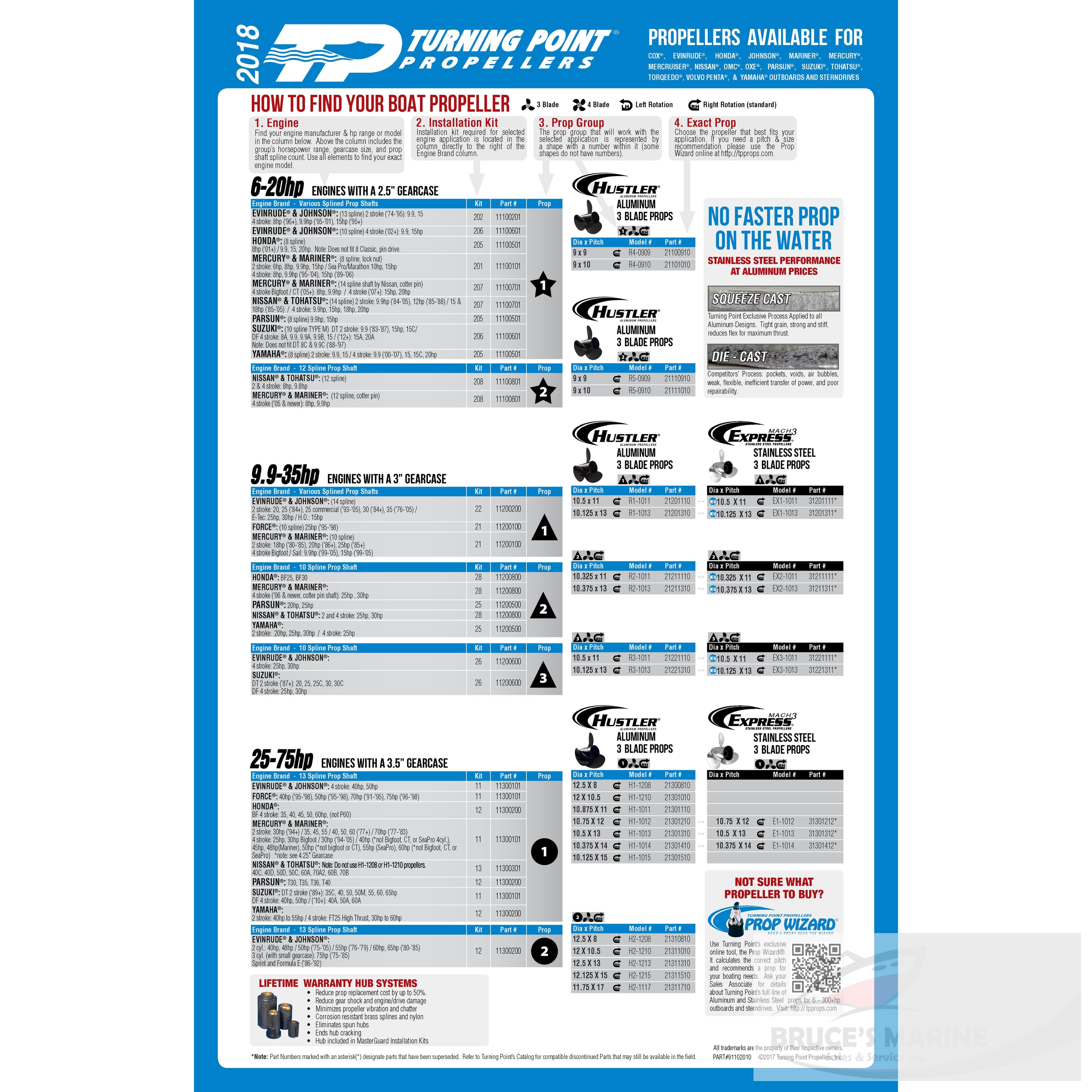

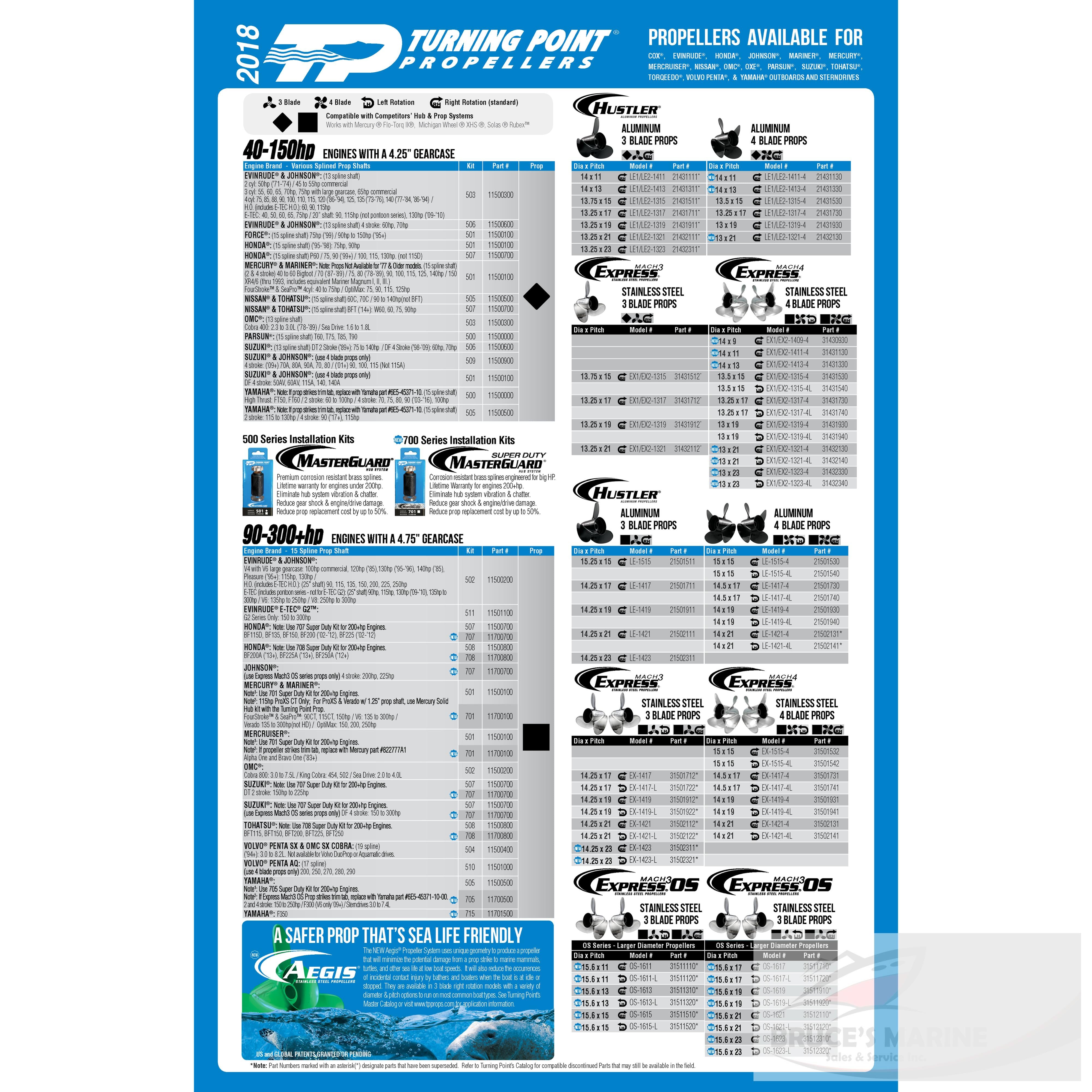

  • Model 22 Applications: Evinrude and Johnson : 2-stroke: 20 hp, 25 hp (‘84 and newer), 25 hp commercial (‘93 and newer), 30 hp (‘84 and newer), 35 hp (‘76 and newer) (See Attached Guide for Complete Hub and Prop Information)

    Model 22 Applications: Evinrude and Johnson : 2-stroke: 20 hp, 25 hp (‘84 and newer), 25 hp commercial (‘93 and newer), 30 hp (‘84 and newer), 35 hp (‘76 and newer) (See Attached Guide for Complete Hub and Prop Information)

    The MasterGuard Hub System also includes a lifetime warranty. The MasterGuard Hub System is the most durable and simplest hub system available. Utilizing a triple tapered key and keyway system, the MasterGuard Hub leaves no room for error. This premium hub system adapts to Turning Point's Rascal®, Hustler®, Express®, SpeedZone® and Classic® propeller lines.

    MasterGuard Hub System Features:

    • Heavy duty spacer adapts to all OEM thrust washers
    • Hi-tech polymer cushion material absorbs damagingh shift shock and vibration
    • Brass tabs reinforce the cushion structure and ensure durability
    • Hub diameter is the smallest in the industry which means maximum exhaust flow and higher horsepower
    • Tapered keyways match with tapered keys inside the prop which makes for a secure fit

    Turning Point Hub General Features:

    • Hubs Interchange with other manufacturers’ propellers
      • Upgrades and replaces Mercury®’s Flo-Torq® and Michigan Wheel®’s XHS™ hub kit systems.
    • Easy to Install: Consumer Friendly Clear and easy step by step directions coupled with minimal parts makes installation easy
    • Increases Performance and HP: High-flow through barrel exhaust system maximizes exhaust flow increasing horsepower and top end speed.
    • Adapts to Almost All Engine Applications: Interchangeable w/ 8hp to 300+hp Props adapting to almost all outboard and sterndrive applications.
    • Eliminate Hub System Vibration & Chatter: Innovative one-piece design reduces the number of parts and eliminates failures commonly seen in multi-part hub systems
    • Reduces Gear Shock & Engine / Drive Damage Shock with an absorbing hi-tech polymer cushion.
    • Corrosion Resistant Materials: Premium corrosion resistance Brass splines
    • Reduce Prop Replacement Cost by 20-30%: Hub kits are designed to be reusable even after most propeller impacts, eliminating the need to replace the hub system when replacing a damaged propeller.
    • Eliminate Hub Cracking & Failure: The glass reinforced high-tech polymer construction increases flexibilty, eliminating potential material stress fractures.
    • Never Buy Another Hub Kit: Limited Life Time Warranty
